Flared Rebar Coupler

Description

Specifications

Aleono Rolling Parallel Thread Rebar Coupler is designed to produce a full strength mechanical joint between reinforcing bars. It is used for rebar mechanical splicing in the concrete structure. It can connect re-bars of same or different diameters laterally, vertically and slantingly. It is broadly applied to the Tunnel, Tower, Bridge, Subway, Airport, Nuclear Power Station, High Rise Building and more. Aleono Parallel Thread Rebar Coupler including Standard Rebar Coupler, Position Rebar Coupler, Transition Coupler and more.

Flared Rebar Coupler is designed to splice rebars when it is hard to be centered. There is one slap at one side of the female thread end, to ensure it is convenient to center the rebar. The Flared Rebar Coupler is a little longer than the normal one.

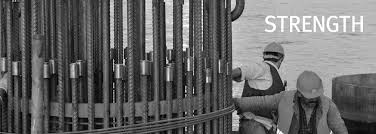

It is mostly used in the Column with big diameter bars.

Technical Parameters

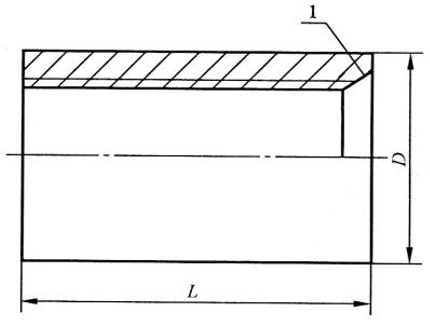

Size	D14	D16	D18	D20	D22	D25	D28	D32	D36	D40
OD(±0.5mm)	21.5	25	27	30	32	37	41	47	53.5	59
Length(±1mm)	38	42	47	52	57	60	67	75	85	90
Thread Pitch	2.5	2.5	2.5	2.5	2.5	3.0	3.0	3.0	3.5	3.5
Thread Angle	75°	75°	75°	75°	75°	75°	75°	75°	75°	75°

Product Advantage

Raw material-saving, high energy saving, high work efficiency.
Construction Environmental Protection. no flame, no noise pollution.
It is not be affected by the chemical compositions and types of reinforced bars and won’t be influenced by weather and work-site.
Low cost, simple operation.
Can be prefabricated and the construction period can be shortened.
High dimension precision, reliable quality and Stable performance.
High strength. The tensile strength usually more than 600 Mpa, it can reach 110% of yield strength of parent rebar.
After 2 million times of fatigue strength test, the connection is in good condition.
According to the inspection of National Construction Quality Supervision and Testing Center, the rebar coupler joint performance has reached the Grade I splicing rebar joint of JGJ107-2016 Industry Standard.

Raw Material

45# Carbon Steel

Chemical composition (%)	C	Si	Mn	Cr	Ni	Cu
	0.42-0.50	0.17-0.37	0.50-0.80	0.25	0.30	0.25
Mechanical property	Yield strength			Tensile strength
	355 Mpa			600 Mpa

Production Processes

Quality Control

Certificate:

Packaging

PP Woven Bags are used inside, Wooden Case is used outside. Products also can be packed according to customer’s special demands.

Protection

To prevent dust and debris into the rebar coupler, we suggest you protect the coupler with Protective Cap before you use it.

Operation

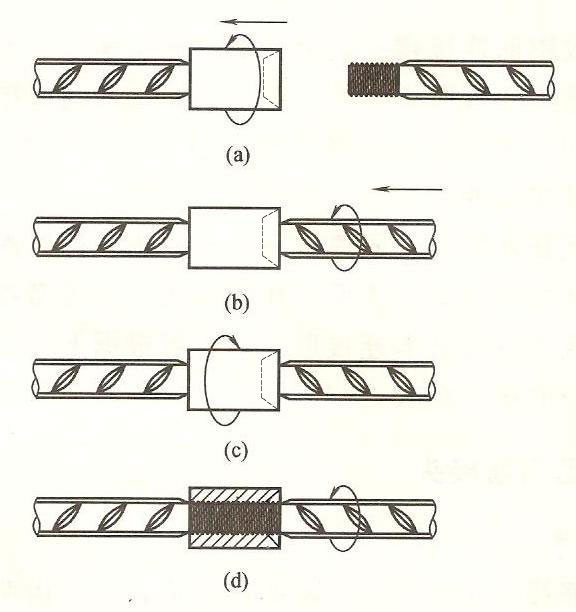

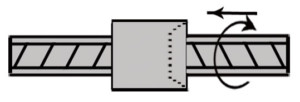

First, you should process thread on rebar end with the Rebar Threading Machine, ensure these two rebar threaded sectors with right-handed thread and the same diameter.
