High Strength Rebar Coupler
Specifications
Aleono Rolling Parallel Thread Rebar Coupler is designed to produce a full strength mechanical joint between reinforcing bars. It is used for rebar mechanical splicing in the concrete structure. It can connect re-bars of same or different diameters laterally, vertically and slantingly. It is broadly applied to the Tunnel, Tower, Bridge, Subway, Airport, Nuclear Power Station, High Rise Building and more. Aleono Parallel Thread Rebar Coupler including Standard Rebar Coupler, Position Coupler, Transition Coupler and more.
High Strenght Rebar Coupler is designed to splice rebars with high strength. the standard one can splice rebars with the same diameter, and at least one rebar is not limited to the rotation and axial movement.

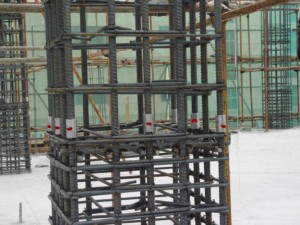

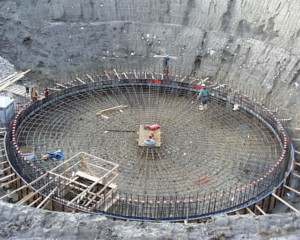

It is mostly adopted under Base Slab and middle section of R.C. Column.
Technical Parameters
|
Size
|
D14
|
D16
|
D18
|
D20
|
D22
|
D25
|
D28
|
D32
|
D36
|
D40
|
|
OD(±0.5mm)
|
21.5
|
25
|
27
|
30
|
32
|
37
|
41
|
47
|
53.5
|
59
|
|
Length(±1mm)
|
38
|
42
|
47
|
52
|
57
|
60
|
67
|
75
|
85
|
90
|
|
Thread Pitch
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
3.0
|
3.0
|
3.0
|
3.5
|
3.5
|
|
Thread Angle
|
75°
|
75°
|
75°
|
75°
|
75°
|
75°
|
75°
|
75°
|
75°
|
75°
|
Product Advantage
-
Raw material-saving, high energy saving, high work efficiency.
-
Construction Environmental Protection. no flame, no noise pollution.
-
It is not be affected by the chemical compositions and types of reinforced bars and won’t be influenced by weather and work-site.
-
Low cost, simple operation.
-
Can be prefabricated and the construction period can be shortened.
-
High dimension precision, reliable quality and Stable performance.
-
High strength. The tensile strength usually more than 980 Mpa, it can reach 110% of yield strength of parent rebar.
-
After 2 million times of fatigue strength test, the connection is in good condition.
-
According to the inspection of National Construction Quality Supervision and Testing Center, the rebar coupler joint performance has reached the Grade I splicing rebar joint of JGJ107-2016 Industry Standard.
Raw Material
40Cr
|
Chemical (%) |
C |
Si |
Mn |
Cr |
|
0.37-0.44 |
0.17-0.37 |
0.50-0.80 |
0.80-1.10 |
|
|
Mechanical property |
Yield strength |
Tensile strength |
||
|
785 Mpa |
980 Mpa |
|||
Production Processes
Quality Control
Certificate:
Packaging
PP Woven Bags are used inside, Wooden Case is used outside. Products also can be packed according to customer’s special demands.
Protection
To prevent dust and debris into the high strength rebar coupler, we suggest you protect the coupler with Protective Cap before you use it.
Operation
First, you should process thread on rebar end with the Rebar Threading Machine, ensure these two rebar threaded sectors with right-handed thread and the same diameter.
Then splice these two rebar threaded sectors.
(a) Rotate the coupler to one rebar threaded sector.
(b) Screw the other rebar threaded sector into the coupler, ensure these two rebar ends are touched to each other.
(c) Rotate the coupler reversely, adjust to ensure the exposedly effective threads of two sides are the same and not more than 2P.
(d) Tighten rebar with torque spanner or socket wrench.
