Transition Taper Threaded Coupler

Transition Taper Threaded Coupler

Specifications

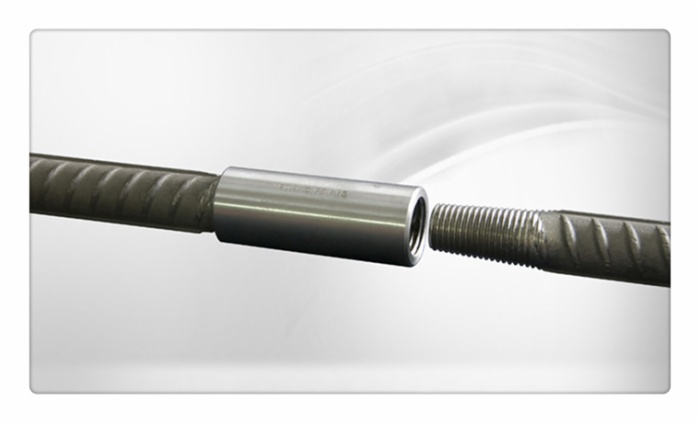

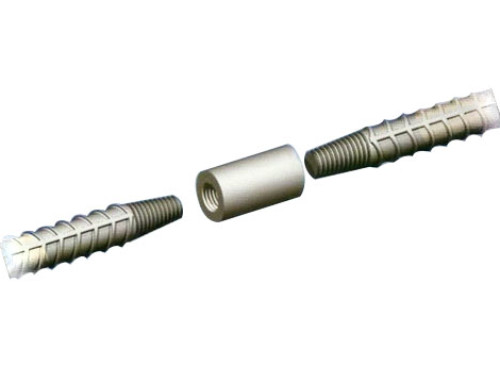

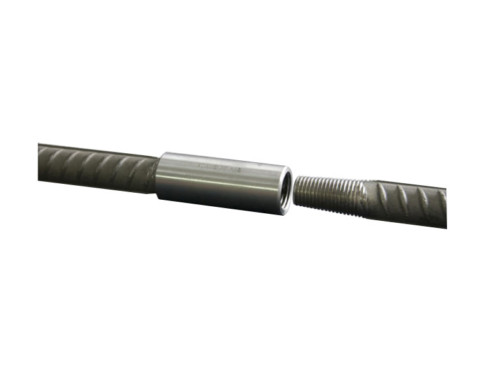

Aleono Taper Threaded Coupler is a kind of mechanical joint with internal tapered thread, which can withstand the axial force and horizontal force at the same time. It is used for rebar mechanical splicing in the concrete structure. It can connect re-bars of same or different diameters laterally, vertically and slantingly. It is broadly applied to the Tunnel, Tower, Bridge, Subway, Airport, Nuclear Power Station, High Rise Building and more. Aleono Taper Threaded Rebar Coupler including Standard Taper Threaded Coupler, Position Taper Threaded Coupler,  Transition Taper Threaded Coupler and more.

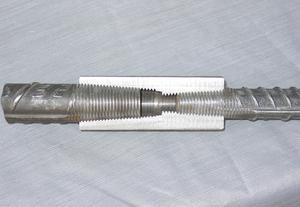

Transition Taper Threaded Coupler is designed to splice taper threaded reinforcing bars with different diameters.

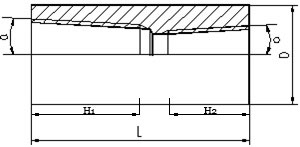

Technical Parameters

Product Advantage

1. Raw material-saving, high energy saving.

2. Construction Environmental Protection. no flame, no noise pollution.

3. It is not be affected by the chemical compositions and types of reinforced bars and won’t be influenced by weather and work-site.

4. Good performance of centering, simple to operate, high work efficiency.

5. Can be prefabricated and the construction period can be shortened.

6. High dimension precision, reliable quality and Stable performance.

7. Good performance of self-lock and sealing.

8.  After 2 million times of fatigue strength test, the connection is in good condition.

9. According to the inspection of National Construction Quality Supervision and Testing Center, the rebar coupler joint performance has reached the Grade I splicing rebar joint of JGJ107-2016 and JG/T 163-2013 Industry Standard.

Raw Material

45# Carbon Steel

Quality Control

Certificate:

Packaging

PP Woven Bags are used inside, Wooden Case is used outside. Products also can be packed according to customer’s special demands.

Protection

To prevent dust and debris into the rebar coupler, we suggest you protect the coupler with Protective Cap before you use it.

Operation

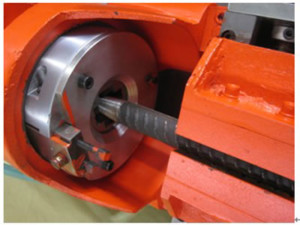

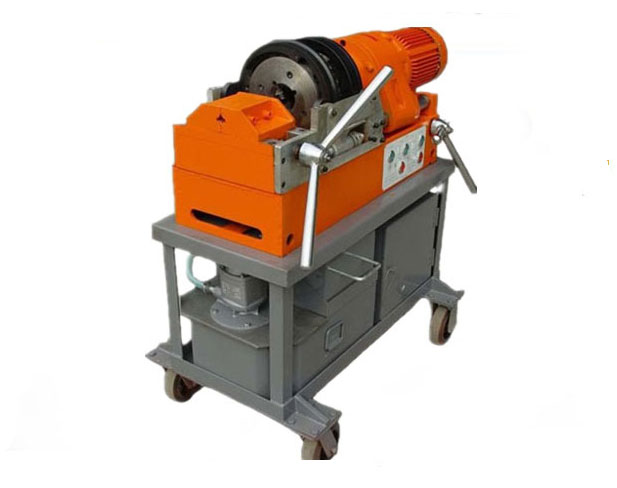

First of all, you should process taper thread on the rebar end with Rebar Taper Threading Machine. Ensure the taper threaded sector with right-handed thread and the same diameter.

Then splice the reinforcing bars.

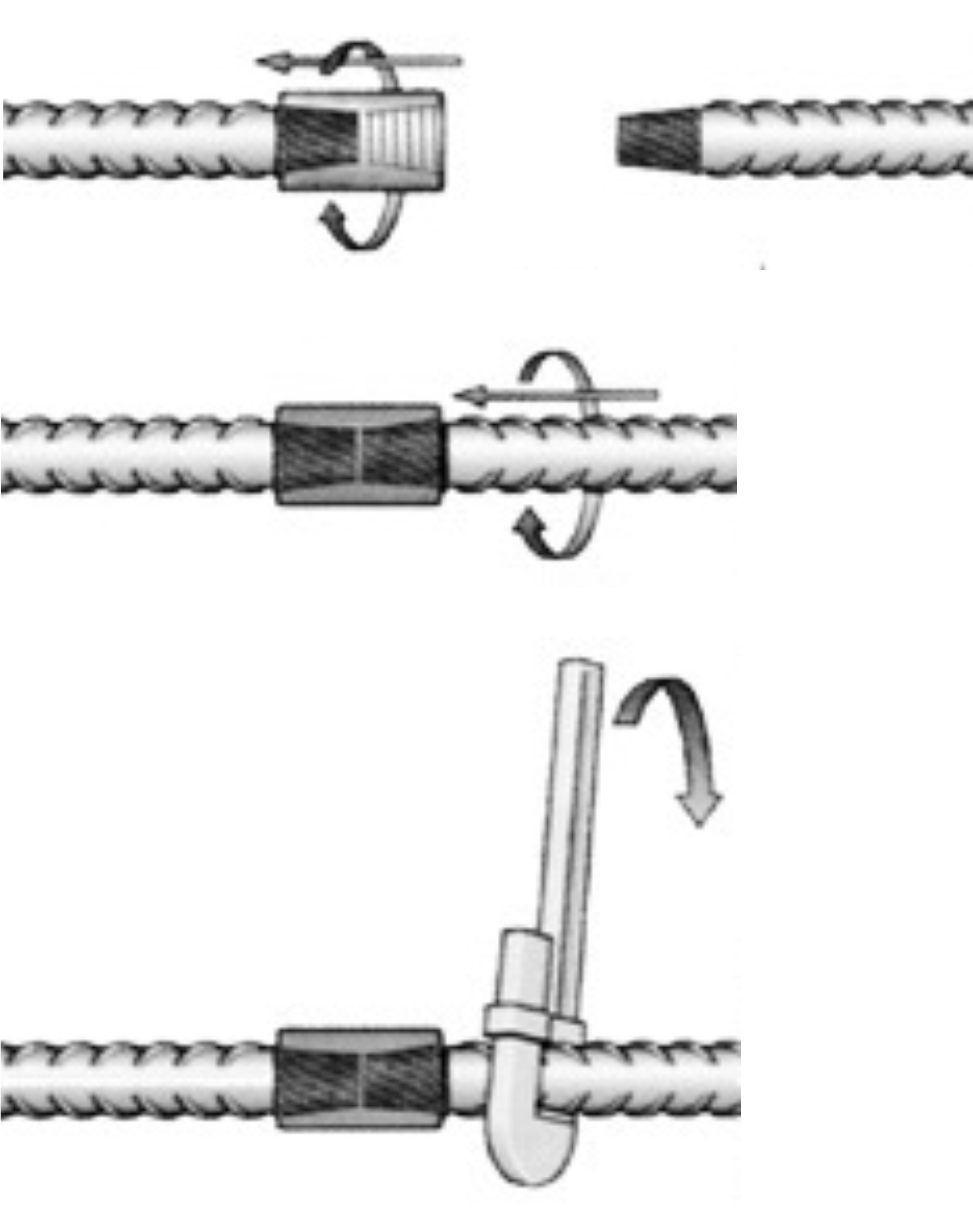

(1) Rotate the taper thread coupler onto the bigger one taper threaded sector.

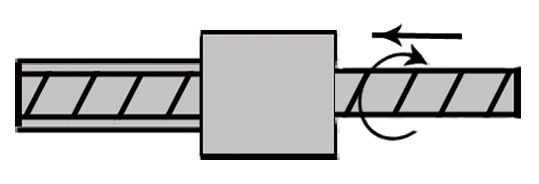

(2) Screw the smaller one taper threaded sector into the coupler.

(3) Tighten the reinforcing bar with torque spanner or socket wrench.
